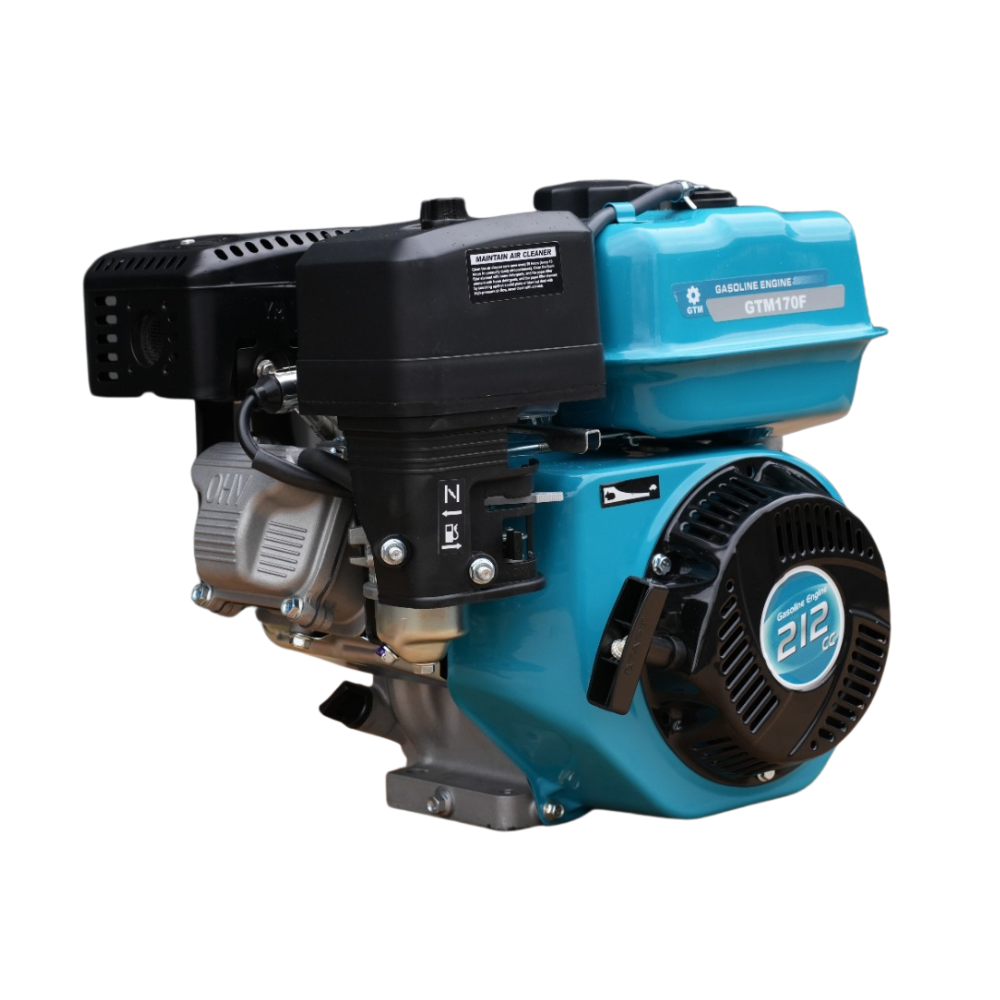

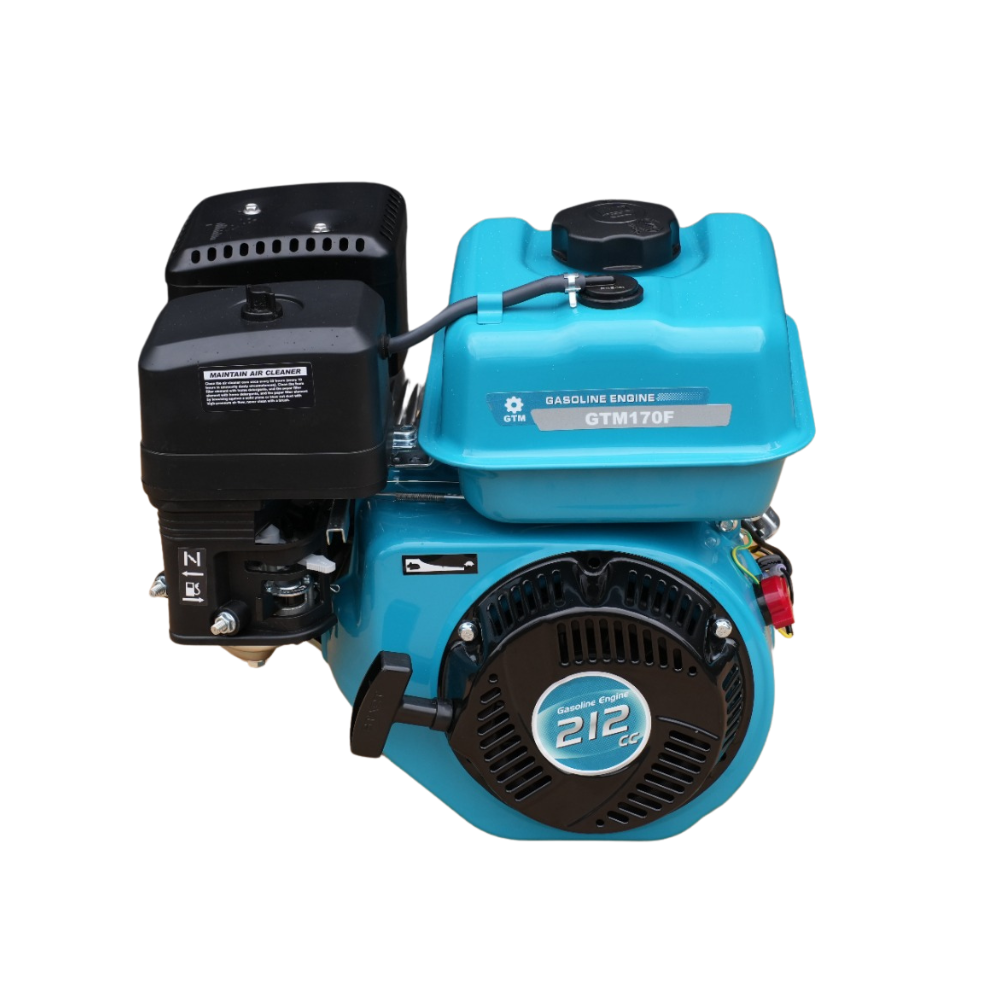

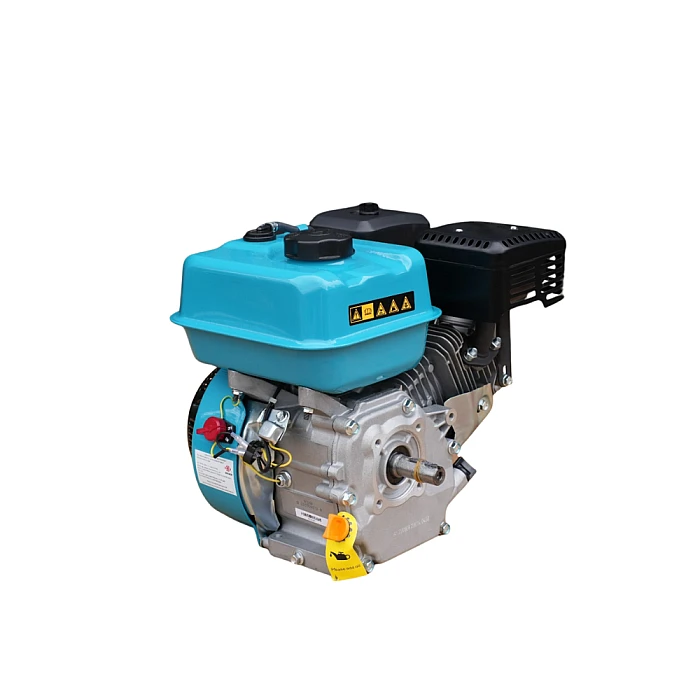

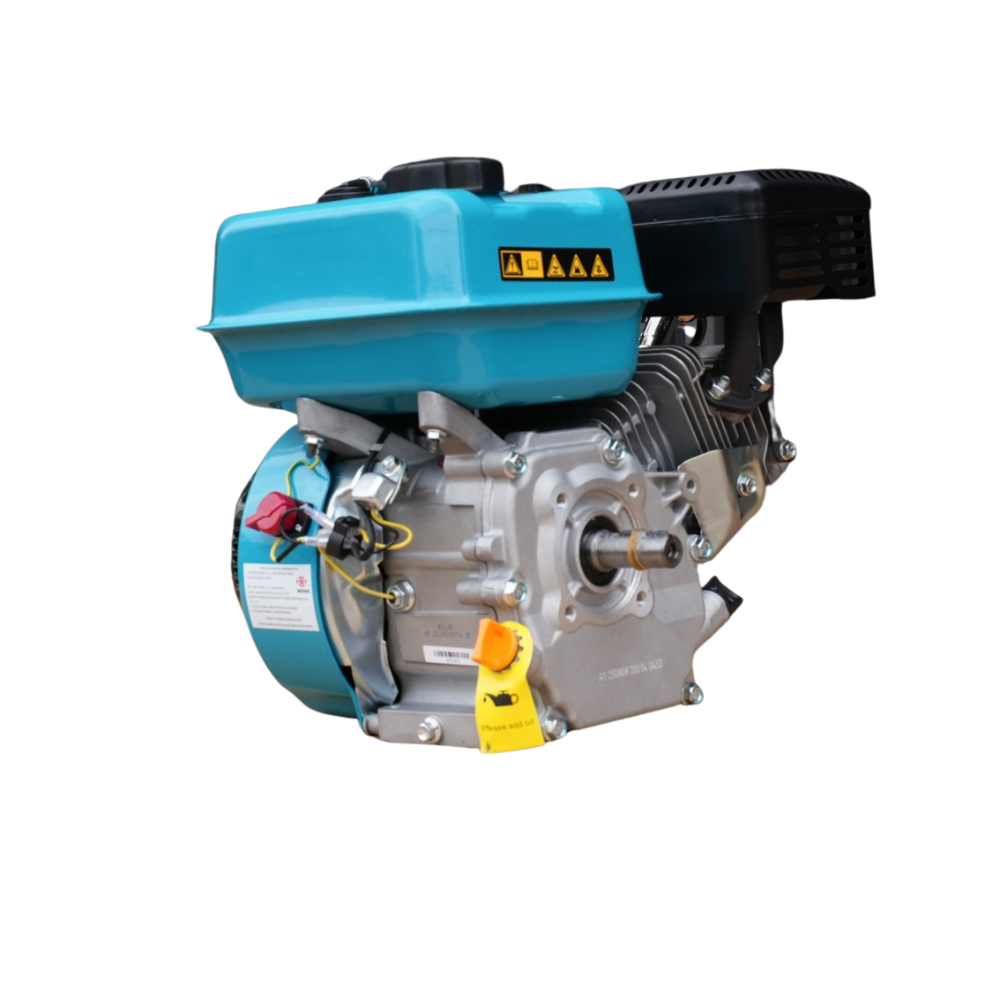

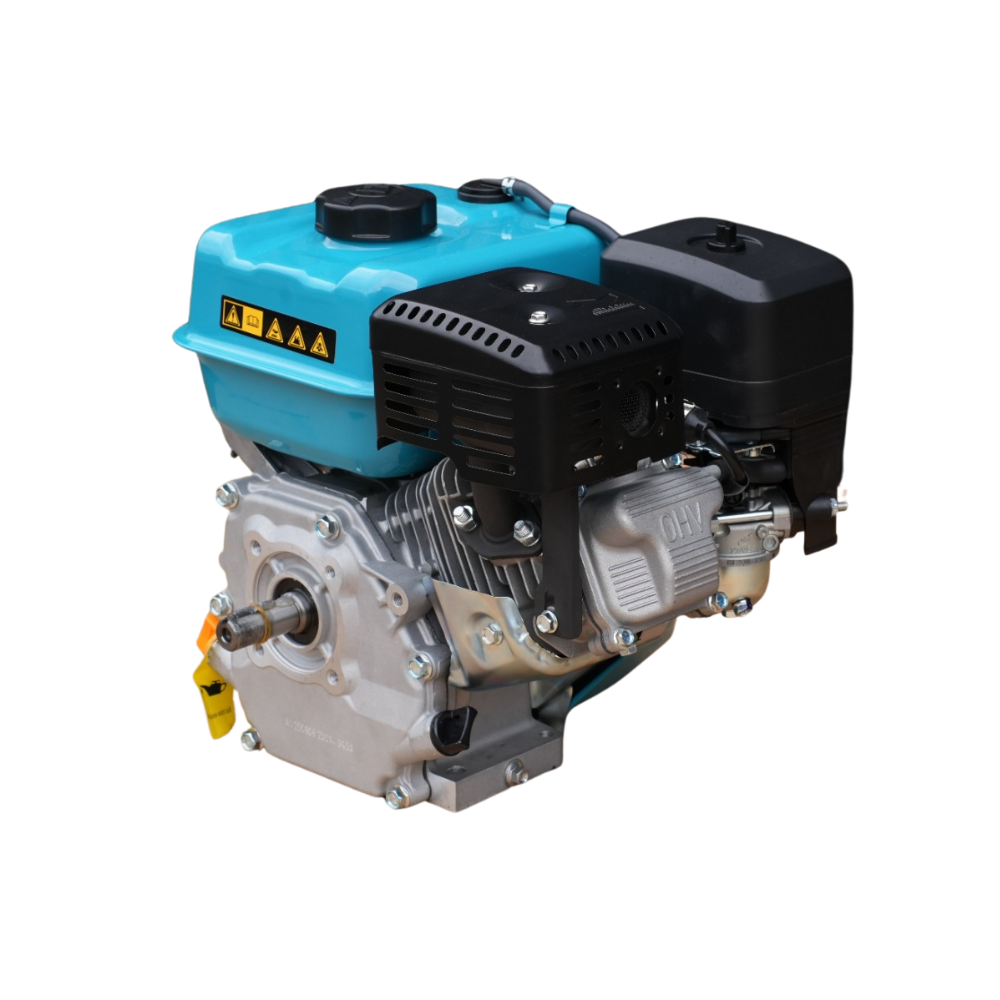

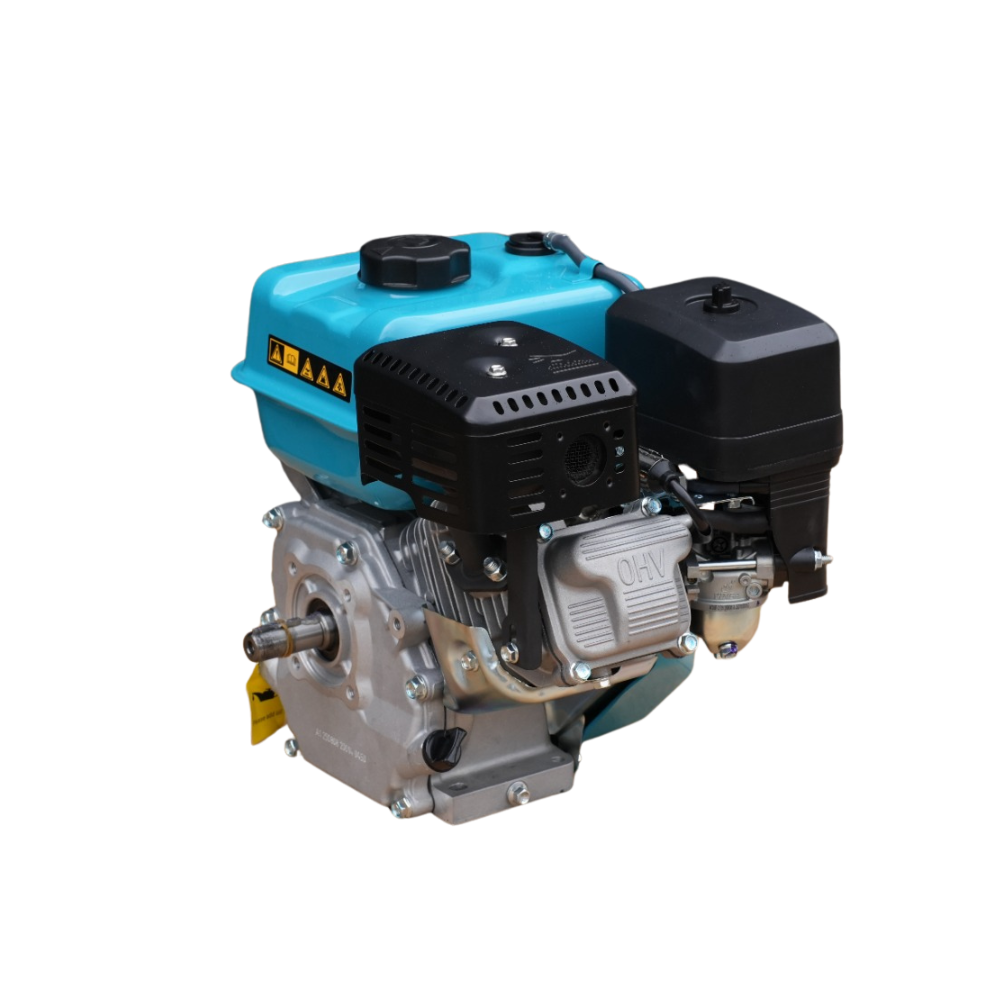

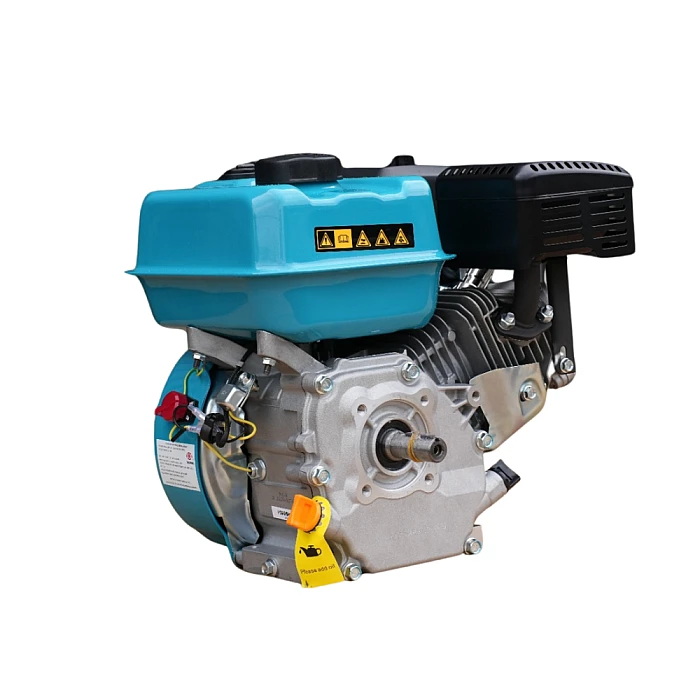

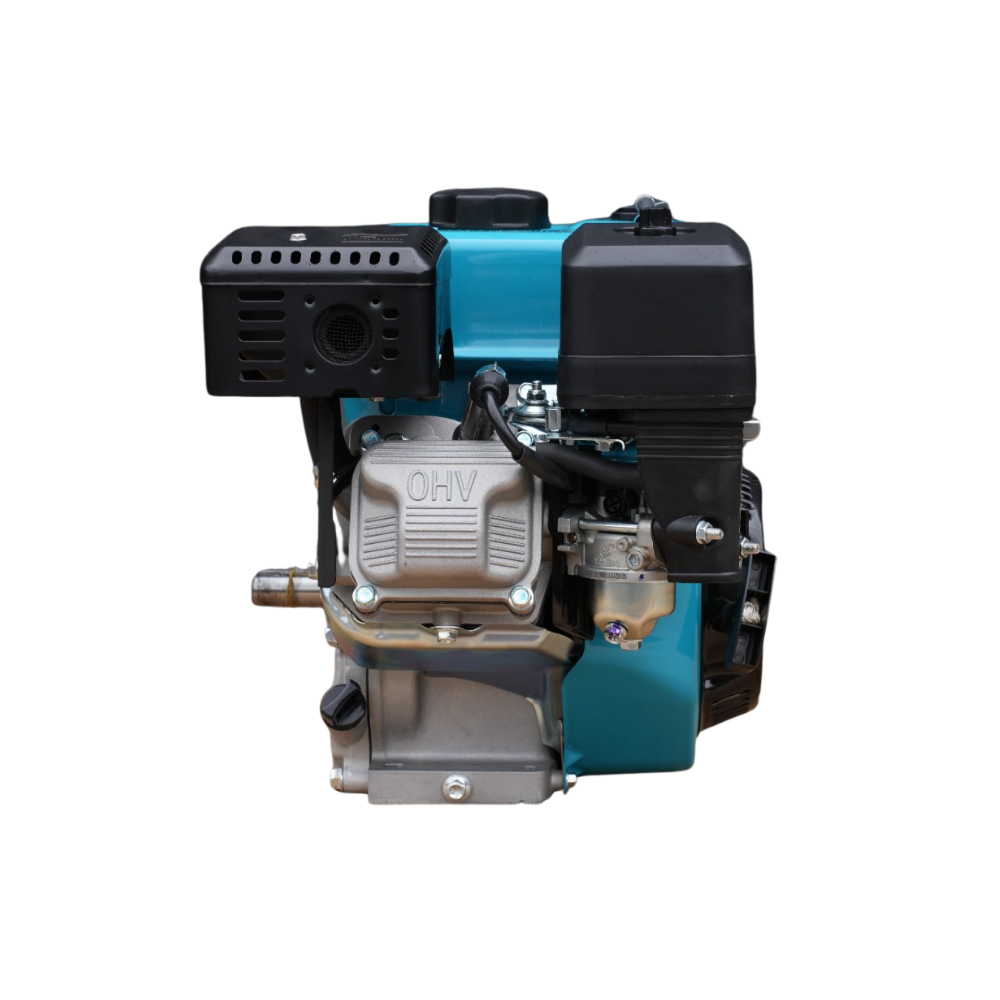

Gasoline engine GTM170F

The GTM170F is a powerful and versatile 4-stroke OHV gasoline engine designed for durability and efficiency. With its 212cc displacement and 7.0 horsepower output, it is an excellent replacement engine for a wide range of applications, including water pumps, tillers, generators, pressure washers, and other construction or agricultural equipment.

Key Features:

• Engine type: Single-cylinder, 4-stroke, OHV, air-cooled
• Displacement: 212cc
• Max power output: 7.0 HP
• Fuel type: Unleaded gasoline
• Starting system: Recoil start (manual)
• Ignition system: Transistorized magneto ignition (TCI)

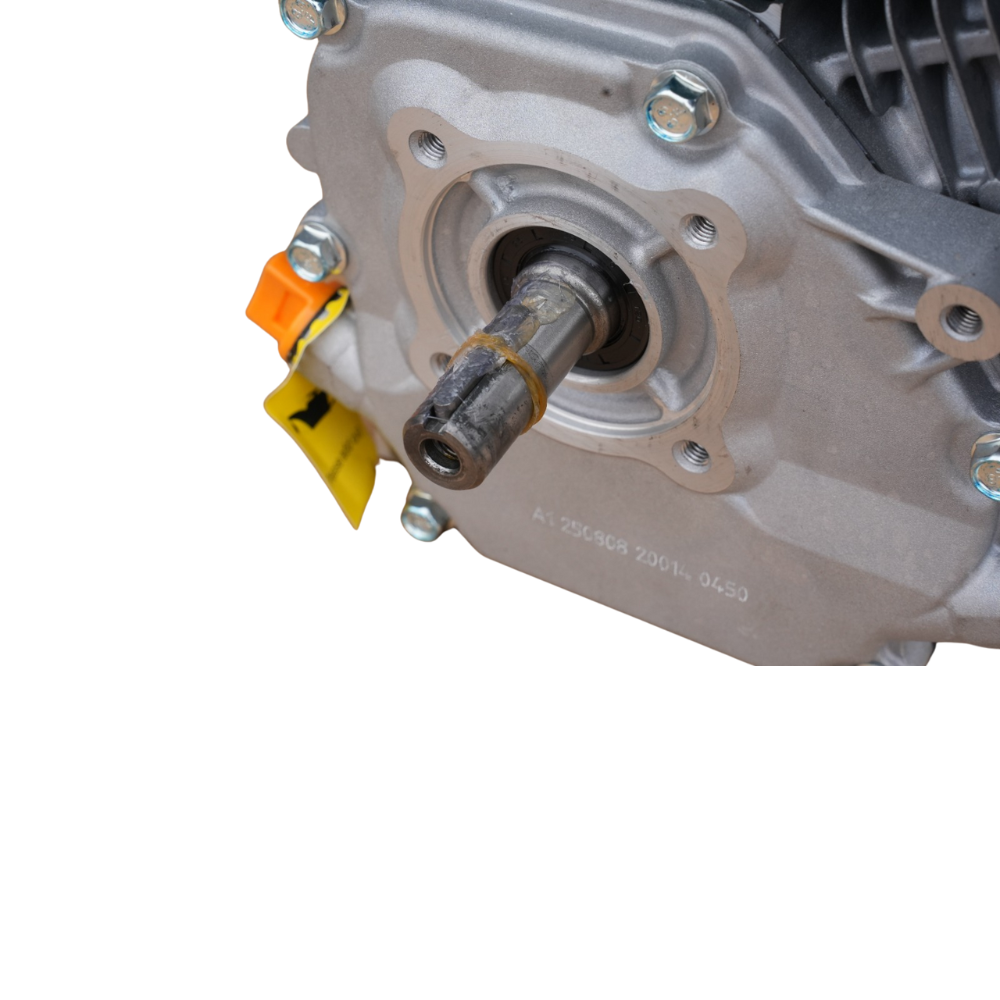

• Shaft type: Horizontal shaft, keyed

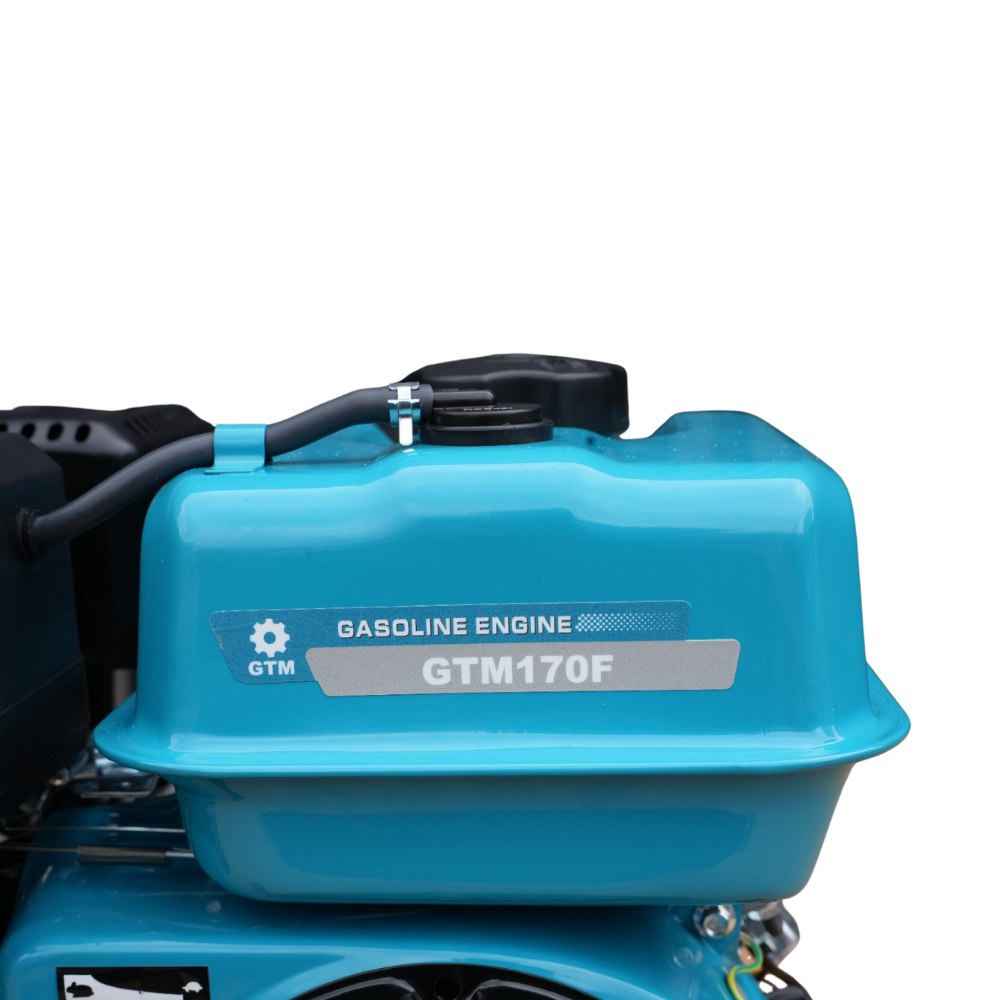

• Fuel tank capacity: ~3.6 L (0.95 gal)
• Oil capacity: ~0.6 L (20 oz)
• Compact design: Easy to mount, durable build
• Low vibration & noise: Smooth performance with OHV technology
• Applications: Suitable for construction machinery, agricultural equipment, generators, pumps, and more

Specifications:

• Engine type: OHV 4-stroke, single-cylinder, air-cooled
• Displacement: 212cc
• Max power: 7.0 HP
• Bore × Stroke: 70 × 55 mm
• Compression ratio: 8.5:1
• Rated speed: 3600 RPM
• Fuel tank capacity: 3.6 L (0.95 gal)
• Oil capacity: 0.6 L (20 oz)
• Shaft diameter: 19.05 mm (3/4") or 25.4 mm (1") (depending on version)
• Starting system: Recoil (manual)
• Dimensions: ~ 390 × 330 × 350 mm
• Dry weight: ~ 16–17 kg (35–37 lbs)

Applications:

• Tillers, cultivators, and other agricultural equipment
• Water pumps and generators
• Construction equipment
• Various industrial and garden machines requiring a horizontal shaft engine
